High-pressure hydraulic valves

40 years’ experience for unparalleled performance
The successive integration of the Auxim and Delta Delage brands gives Ades Technologies group the benefit of 40 years’ experience in hydraulic valve high-pressure solutions.

ADES Technologies group was a pioneer in this field, introducing “between-flange” solutions from the outset, which were adapted to the SAE standard and floating sealing, which have often been copied but still have the technological lead. In addition, special care has also been taken in the design of high-pressure valves up to very large sizes.

Under the Delta Delage brand, these valves with special seals are among the best-performing valves on the market.


Products
RD3
■DN: from 6 to 50
■Pressure from 200 to 350 bars
■Impact: Manufacturer

HP3
■DN: from 15 to 100
■Pressure: See ISO standard 6162-1
■Impact: SAE

HP6
■DN: from 15 to 50
■Pressure: See ISO standard 6162-2, 420 bars
■Impact: SAE

H352 and H354
■DN: 40, 50, 65, 80
■Pressure: 350 bars
■Impact: Cetop/PN400 or Manufacturer (DN40 and 50)

RD7
■DN: 6 to 40
■Pressure: 630 bars
■Impact: proprietary

Multi-way manifold
■DN: from 15 to 50
■Pressure: See ISO standard 6162-1 and 6162-2
■Assembly: between flanges or new version on base
■Impact: SAE or Manufacturer (on base)

Materials
■Sleeve: phosphate-treated steel, stainless steel (or surface treatments on demand)
■Ball: Stainless steel
■Sealing: Polyacétal
■Seals: Buna, FKM (Viton), EPDM, Specific
■Handle: forged steel
■Temperature range: according to seals


Assembly options
■In-line (between flanges)
■Flanged laterally impact (with or without retaining plate)
■On base (Manifold)
■Twinned.

Connection
■Any type of flange (BW, BSPP, SW etc) SAE impact
■Cetop or proprietary (RD)

Options
■Micro contact (electric or induction)
■Can be padlocked
■Locked

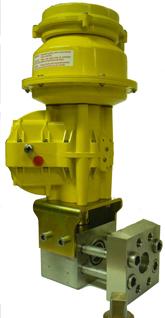

■Type of drive (pneumatic, electric, hydraulic)
■Repair kit.

Type of circuit
■Oil
■Air
■Nitrogen
■Water
■Fuel
■Gas
■Aeronautical oil
■Esters-phosphates
■Etc

Product benefits
■Low operating torque including high DN at high pressure
■High pressure/high DN/Operating torque
■Flange connection (standardized SAE or manufacturer RD)
■Easy fitting and removal with flange connection, without moving the pipework
■Small spatial requirement with built-in connections
■No more stacking of connectors or risk of leaks
■Integral passage
■High-pressure resistance (delta P maintained)
■Manufacturer’s plate (traceability)
■Individually assembled and tested
■Reliable performance over time
■Low operating costs
■Proven design (dating from the 1960s for the RDs and 1980s for the HPs), based on hydraulic know-how.
■Experience in difficult environments where reliability is required
